TZ703-Discontinued models-
-
TZ703
-
-
TZ703
-
Feature
Best compaction quality and efficiency
- Two hydrostatic drive motors in the rear axle minimize any pushing or shoving of hot asphalt mix (HMA) mat.
- Pressurized water sprinkler and release agent spray systems are stndard to minimize pickup of HMA on tires.
Operators comfort
- Most of tire surfaces and sprinkler nozzles are visible from the operator’s station.
- Extra water pump to fill a separate water tank is standard, which is designed for moisture-conditioning subbase materials and filling water tanks on other rollers on the HMA mat.
Easy Maintenance
- Rear wheels are powered by hydrostatic direct-drive motors.
- Water and release agent spray system with anti-clog package, i.e., a plastic water tank, triple-protection filtration, etc., and with perfect draining winterization.
Specification
*Specifications are subject change without notice.
*Engine meets EPA Interim Tier 4 standards.
*Using low quality fuel may cause engine failure.
| MODEL | TZ703 | |
|---|---|---|
| WEIGHTS | ||
| Operating weight | kg | 12,600 |
| Load on front | kg | 5,390 |
| Load on rear | kg | 7,210 |

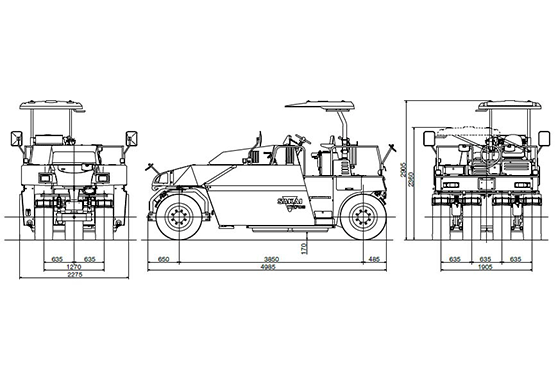

| DIMENSIONS | ||
| Overall length | mm (in) | 4,985 (196) |
| Overall width | mm (in) | 2,275 (90) |
| Overall height | mm (in) | 2,905 (114) |
| Wheelbase | mm (in) | 3,850 |
| ENGINE | ||
| Make | KUBOTA | |
| Model | V3800-CR-T-WDP | |
| Type | Diesel, Water-cooled, 4-cycle, direct injection type with turbo charger | |
