SW502S-1/352S-1-Discontinued models-
-
SW502S-1
-

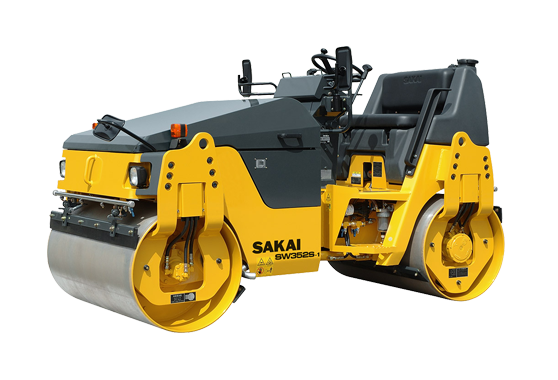

SW352S-1
-
-
SW502S-1
-
SW352S-1
-
Feature
Best compaction quality and efficiency
- Neutral start switch permits the engine to start only when the forward-reverse lever is in the neutral position
- Excellent gradability.
Higher Safety standards
- Built in safety features prevent accidental starting, satarts only when the Forward & Reverse lever is in the neutral position.
- Emergency brake pedal is standard.
Easy Maintenance
- Sprinkler system with anti-clog package, i.e., a plastic water tank, triple-protection filtration, etc., and with perfect draining winterization.
- Oil bath lubrication for drum vibrator mechanism
Specification
*Specifications are subject change without notice.
*Engine meets EPA standards for SW502S-1.
*Using low quality fuel may cause engine failure.
| MODEL | SW502S-1 | SW352S-1 | ||
|---|---|---|---|---|
| WEIGHTS | ||||
| Operating weight | kg (lb) | 4,090 (9,020) |
2,940 (6,485) |
|
| Load on front | kg (lb) | 2,000 (4,410) |
1,480 (3,265) |
|
| Load on rear | kg (lb) | 2,090 (4,610) |
1,460 (3,220) |
|

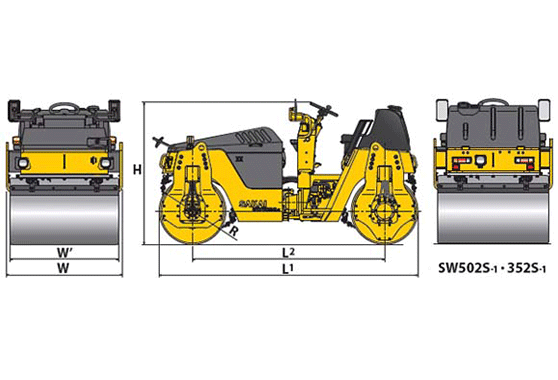

| DIMENSIONS | ||||
| Overall length(L1) | mm (in) | 3,100 (122) |
2,675 (105) |
|
| Overall width(W) | mm (in) | 1,390 (55) |
1,290 (51) |
|
| Overall height(H) | mm (in) | 1,705 (67) |
1,575 (62) |
|
| Wheelbase(L2) | mm (in) | 2,300 (91) |
2,000 (79) |
|
| ENGINE | ||||
| Make | KUBOTA | |||
| Model | V2203-EDM(Interim Tire4) | D1503-EDM | ||
| Type | Diesel, Water-cooled, 4-cycle, 4-cylinder | Diesel, Water-cooled, 4-cycle, 3-cylinder | ||
